Concept

A single Rust binary that auto-detects every connected SDR, streams each over the standard rtl_tcp protocol, and provides a TUI dashboard and HTTP API for monitoring and control — designed for headless Raspberry Pi deployment.

Quick Facts


Status Active
Language N/A
Started 2026

What This Is

A multi-SDR streaming server that replaces the separate C-based servers (rtl_tcp, hfp_tcp, airspy_tcp) with a single async Rust binary. It auto-detects all connected hardware, assigns each device its own TCP port, and streams raw IQ samples using the industry-standard rtl_tcp protocol. Any existing SDR client (GQRX, SDR#, CubicSDR) connects without modification.

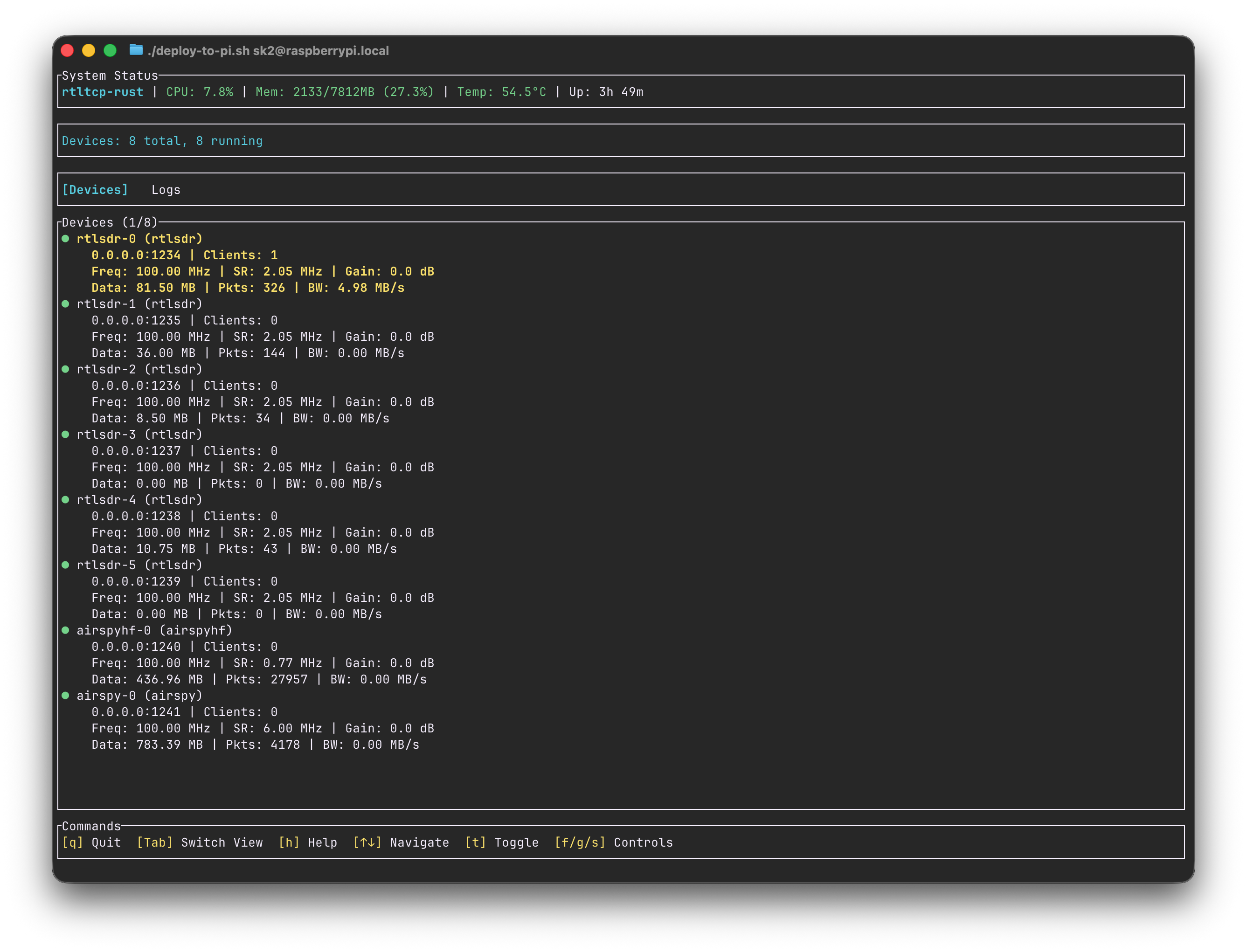

rtltcp-rust TUI TUI dashboard showing 8 RTL-SDR devices and an AirSpy HF+ streaming on a Raspberry Pi.

Why a Unified Server

Existing C-based implementations have three problems:

This server manages all devices from a single process with shared state, a TUI for live adjustment over SSH, and an HTTP API for programmatic monitoring.

Supported Hardware

Device Default Sample Rate Bits Port Assignment
RTL-SDR 2.048 MHz 8-bit 1234, 1235, …
AirSpy HF+ 768 kHz 18-bit (native) continues after RTL-SDR
AirSpy 6 MHz 12-bit (native) continues after AirSpy HF+

All three device types are auto-detected on startup. AirSpy HF+ and AirSpy support are compile-time features enabled by default.

Architecture

                    ┌─────────────────────────┐
                    │     rtltcp-rust          │
                    │                          │
   USB ─────────── │  Device Manager          │
   RTL-SDR 0..N    │    ├─ RTL-SDR driver     │ ──── TCP :1234
   AirSpy HF+      │    ├─ AirSpy HF+ driver │ ──── TCP :1235
   AirSpy           │    └─ AirSpy driver     │ ──── TCP :1236
                    │                          │
                    │  HTTP API (:8080)        │ ──── REST endpoints
                    │  TUI Dashboard           │ ──── SSH terminal
                    │  Config (TOML)           │
                    └─────────────────────────┘

Each device runs in its own tokio task with dedicated USB I/O and TCP streaming threads. The TUI and HTTP API share device state through Arc<Mutex<>> with 1 Hz status broadcasts.

TUI Dashboard

The TUI provides real-time monitoring and live control over SSH:

HTTP API

REST API starts on port 8080 by default:

curl http://localhost:8080/api/v1/devices

{
  "devices": [
    {
      "name": "rtlsdr-0",
      "device_type": "rtlsdr",
      "frequency_hz": 100000000,
      "sample_rate_hz": 2048000,
      "clients_connected": 1,
      "running": true,
      "bandwidth_mbps": 3.84
    }
  ]
}
Method Path Description
GET /api/v1/health Liveness check
GET /api/v1/server Version, uptime, device count
GET /api/v1/devices All devices with status
GET /api/v1/devices/:name Single device by name

Raspberry Pi Deployment

Docker-based cross-compilation for all Pi models:

# Project Context: rtltcp-rust
./docker/build-images.sh aarch64

# Project Context: rtltcp-rust
cross build --release

# Project Context: rtltcp-rust
STRIP=1 ./deploy-to-pi.sh pi@raspberrypi.local
Target Pi Model
aarch64-unknown-linux-gnu Pi 3/4/5 (64-bit)
armv7-unknown-linux-gnueabihf Pi 2/3 (32-bit)
arm-unknown-linux-gnueabihf Pi Zero/1

Development Roadmap

Phase 1: Hardware Foundation (Complete)

FFI wrappers for librtlsdr, basic TCP streaming, rtl_tcp protocol compliance. Verified with GQRX and SDR#.

Phase 2: Multi-SDR & AirSpy (Complete)

libairspyhf and libairspy FFI wrappers, multi-device architecture with per-device ports, graceful shutdown with signal handling.

Phase 3: TUI & Live Config (90%)

Ratatui-based dashboard, interactive frequency/gain/sample rate adjustment, channel-based command dispatch, HTTP REST API. Remaining: config save/reload.

Phase 4: Network Optimization (Planned)

Compression (LZ4/zstd), UDP transport with Forward Error Correction, “Mac Tunnel” client for remote desktop control.

Tech Stack
