AutoNetkit
v1.8 — Performance & Optimization
Concept

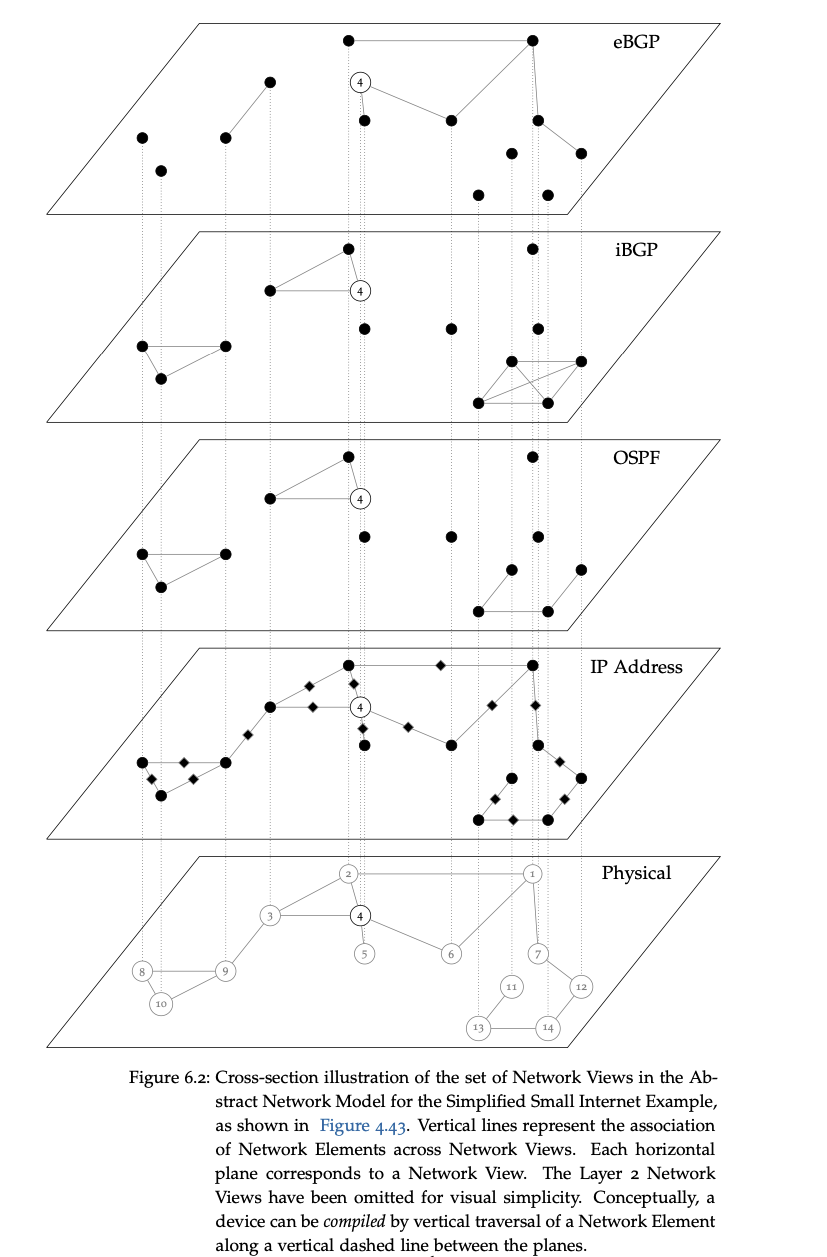

Network topology modeling typically forces a choice between the speed of untyped graph libraries (NetworkX) and the rigidity of database-backed sources of truth. AutoNetkit eliminates this trade-off by using Pydantic for schema validation and a Rust core (petgraph) for graph traversals. It is a modern reimagining of the original AutoNetkit research, reclaiming the name for a production-ready automation library.
Quick Facts
| Status | v1.8 — Performance & Optimization |
| Language | N/A |
| Started | 2026 |
What This Is
A Python library for modeling and querying network topologies with type-safe Pydantic models and a Rust core. Expressive Python API backed by compiled graph algorithms (petgraph), with automatic configuration generation for multi-vendor network deployments.
Key Features

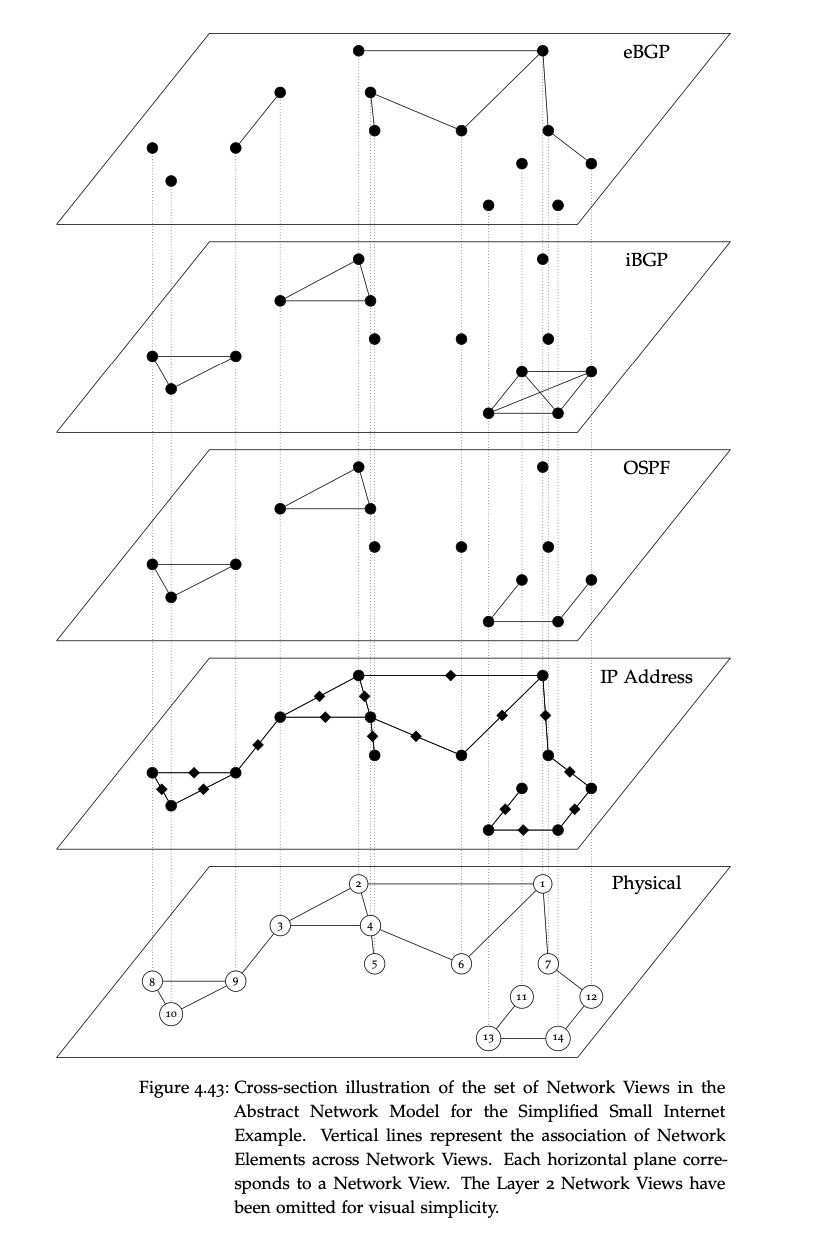

- Two-Stage Transformation Model: Whiteboard (sketch) → Plan (logical) → Protocol Layers (physical)
- Type-Safe Models: Pydantic validation ensures correct topology structure at design time
- Lazy Query API: Composable queries with Rust-backed execution (powered by
petgraph) - Configuration Generation: Automatic multi-vendor config generation (Cisco IOS/IOS-XR/NX-OS, Juniper JunOS, Arista EOS)
- Batteries-Included Blueprints: Pre-built domain models for ISIS, MPLS, EVPN, L3VPN, IXP
- Rust Core (
ank_nte): Graph operations run at native speed with Python FFI bindings
Examples
Service Provider Core: IS-IS + MPLS + iBGP
Input Topology (transitnet.yaml):
topology:
- metadata:
name: TransitNet SP Core
organisation: TransitNet
asn: 65000
- nodes:
- P1:
role: core
data:
pop: West
platform: iosxr
loopback: 10.0.0.1/32
endpoints:
- Gi0/0/0/0 # to P3
- Gi0/0/0/1 # to P5
- Gi0/0/0/2 # to PE1
- P3:
role: core
data:
pop: East
platform: iosxr
loopback: 10.0.0.3/32
endpoints:
- Gi0/0/0/0 # to P1
- Gi0/0/0/2 # to PE3
- PE1:
role: pe
data:
pop: West
platform: iosxr
loopback: 10.0.0.11/32
endpoints:
- Gi0/0/0/0 # to P1
- links:
- [P1, Gi0/0/0/0, P3, Gi0/0/0/0] # West-East core
- [P1, Gi0/0/0/2, PE1, Gi0/0/0/0] # Core-PE
Build Protocol Layers:
from autonetkit import Topology
from autonetkit.blueprints.designs.isis import build_isis_layer
from autonetkit.blueprints.designs.mpls import build_mpls_layer
# AutoNetkit
topology = Topology.from_yaml("transitnet.yaml")
# AutoNetkit
isis_layer = build_isis_layer(
topology,
level=2,
area="49.0001",
parent_layer="physical"
)
# AutoNetkit
mpls_layer = build_mpls_layer(
topology,
igp_layer="isis",
layer_name="mpls"
)
Generated Configuration (P1 - Cisco IOS-XR):
hostname P1
!
interface Loopback0
ipv4 address 10.0.0.1 255.255.255.255
!
interface GigabitEthernet0/0/0/0
description to P3
ipv4 address 10.1.0.1 255.255.255.252
!
interface GigabitEthernet0/0/0/2
description to PE1
ipv4 address 10.1.0.5 255.255.255.252
!
router isis CORE
is-type level-2-only
net 49.0001.0100.0000.0001.00
address-family ipv4 unicast
metric-style wide
!
interface Loopback0
passive
address-family ipv4 unicast
!
interface GigabitEthernet0/0/0/0
point-to-point
address-family ipv4 unicast
metric 10
!
!
interface GigabitEthernet0/0/0/2
point-to-point
address-family ipv4 unicast
metric 10
!
!
!
mpls ldp
router-id 10.0.0.1
interface GigabitEthernet0/0/0/0
!
interface GigabitEthernet0/0/0/2
!
!
L3VPN Configuration
Input: Add customer sites to PE routers:
# AutoNetkit
- nodes:
- CE1:
role: ce
data:
organisation: NetCorp
asn: 65100
loopback: 192.168.1.1/32
endpoints:
- Gi0/0
- CE2:
role: ce
data:
organisation: NetCorp
asn: 65100
loopback: 192.168.2.1/32
endpoints:
- Gi0/0
- links:
- [PE1, Gi0/0/0/1, CE1, Gi0/0] # PE-CE link
- [PE3, Gi0/0/0/1, CE2, Gi0/0] # PE-CE link
Build L3VPN Layer:
from autonetkit.blueprints.designs.l3vpn import build_l3vpn_layer
# AutoNetkit
l3vpn_layer = build_l3vpn_layer(
topology,
service_name="NetCorp-L3VPN",
customer="NetCorp",
customer_asn=65100,
provider_asn=65000,
vpn_id=100
)
Generated VRF Configuration (PE1):
vrf NETCORP
address-family ipv4 unicast
import route-target
65000:100
!
export route-target
65000:100
!
!
!
interface GigabitEthernet0/0/0/1
description to CE1 (NetCorp)
vrf NETCORP
ipv4 address 10.100.1.1 255.255.255.252
!
router bgp 65000
vrf NETCORP
rd 65000:100
address-family ipv4 unicast
redistribute connected
!
neighbor 10.100.1.2
remote-as 65100
description CE1
address-family ipv4 unicast
route-policy NETCORP-IN in
route-policy NETCORP-OUT out
!
!
!
!
Containerlab Deployment
Export to Containerlab:
from autonetkit.blueprints.environments import get_environment
# AutoNetkit
env = get_environment('containerlab')
# AutoNetkit
artifacts = env.generate(topology)
# AutoNetkit
with open("transitnet.clab.yml", "w") as f:
f.write(artifacts.files['topology.clab.yml'])
Generated Containerlab File (transitnet.clab.yml):
name: transitnet
mgmt:
network: mgmt
ipv4-subnet: 172.20.20.0/24
topology:
nodes:
P1:
kind: cisco_xrv9k
image: vrnetlab/vr-xrv9k:7.3.2
mgmt-ipv4: 172.20.20.11
binds:
- ./configs/P1.cfg:/config/startup-config.cfg
P3:
kind: cisco_xrv9k
image: vrnetlab/vr-xrv9k:7.3.2
mgmt-ipv4: 172.20.20.13
binds:
- ./configs/P3.cfg:/config/startup-config.cfg
PE1:
kind: cisco_xrv9k
image: vrnetlab/vr-xrv9k:7.3.2
mgmt-ipv4: 172.20.20.21
binds:
- ./configs/PE1.cfg:/config/startup-config.cfg
links:
- endpoints: ["P1:Gi0/0/0/0", "P3:Gi0/0/0/0"]
- endpoints: ["P1:Gi0/0/0/2", "PE1:Gi0/0/0/0"]
Deploy and Verify:
# AutoNetkit
sudo containerlab deploy -t transitnet.clab.yml
# AutoNetkit
sudo containerlab inspect -t transitnet.clab.yml
# AutoNetkit
# AutoNetkit
# AutoNetkit
# AutoNetkit
# AutoNetkit
# AutoNetkit
# AutoNetkit
# AutoNetkit
docker exec -it clab-transitnet-P1 show isis neighbors
# AutoNetkit
# AutoNetkit
# AutoNetkit
# AutoNetkit
# AutoNetkit
# AutoNetkit
docker exec -it clab-transitnet-P1 show mpls ldp neighbor
# AutoNetkit
# AutoNetkit
# AutoNetkit
# AutoNetkit
# AutoNetkit
# AutoNetkit
# AutoNetkit
Query API Usage
Composable queries with Rust-backed execution:
# AutoNetkit
core_routers = topology.query.nodes().where(
role="core", pop="North"
).models()
# AutoNetkit
inter_pop_links = topology.query.links().where(
link_type="long-haul"
).count()
# AutoNetkit
mpls_devices = topology.layer("mpls").nodes().where(
mpls_enabled=True
).ids()
Integration with the Network Visualization Engine
Export for visualization:
# AutoNetkit
topology.export_for_netvis(
"output.json",
layout="hierarchical",
node_metadata=True
)
The Network Visualization Engine applies advanced layout algorithms to produce publication-quality diagrams.
YAML Topology Format
Define topologies in YAML for rapid prototyping:
topology:
- metadata:
name: TransitNet SP Core
organisation: TransitNet
asn: 65000
- nodes:
- P1:
role: core
data:
pop: West
platform: iosxr
loopback: 10.0.0.1/32
endpoints:
- Gi0/0/0/0 # to P3
- Gi0/0/0/1 # to P5
- PE1:
role: pe
data:
pop: West
platform: iosxr
loopback: 10.0.0.11/32
endpoints:
- Gi0/0/0/0 # to P1
- Gi0/0/0/1 # customer-facing
- links:
- [P1, Gi0/0/0/0, P3, Gi0/0/0/0] # West-East
- [P1, Gi0/0/0/1, P5, Gi0/0/0/0] # West-North
- [P1, Gi0/0/0/2, PE1, Gi0/0/0/0] # Core-PE
Load and process:
topology = Topology.from_yaml("transitnet.yaml")
# AutoNetkit
isis_layer = build_isis_layer(topology, level=2, area="49.0001")
mpls_layer = build_mpls_layer(topology, igp_layer="isis")
# AutoNetkit
env = get_environment('containerlab')
artifacts = env.generate(topology)
Available Blueprints
Pre-built design functions for common network patterns:
| Blueprint | Purpose | Key Features |
|---|---|---|
| IS-IS | IGP routing | Multi-level (L1, L2, L1/L2), area assignment, NET generation |
| MPLS/LDP | Label switching | Follows IGP adjacencies, label range configuration, targeted LDP |
| L3VPN | VPN services | VRF configuration, RD/RT generation, PE-CE sessions |
| EVPN | L2/L3 overlay | VXLAN, MAC/IP routes, multi-tenancy |
| IXP | Peering fabric | Route server, bilateral peering, BGP communities |
| Data Center | Spine-leaf | CLOS topology, ECMP, BGP unnumbered |
Each blueprint provides:
- Layer builder functions for protocol derivation
- Pydantic models for type-safe configuration
- Query helpers for network analysis
- Config templates for multi-vendor export
Milestones
v1.0 API Polish (Shipped Jan 24, 2026) Standardized manager API and query API foundation.
v1.1 Batteries-Included (Shipped Jan 25, 2026) Transform operations, IP allocation helpers, and query demos.
v1.2 Foundations Extraction (Shipped Jan 27, 2026) Extracted domain models into blueprints module (ISIS, MPLS, EVPN, L3VPN, IXP).
v1.3 Whiteboard-to-Blueprint (Shipped Jan 31, 2026) Two-stage transformation model and Rust-backed query engine.
- Whiteboard (sketch) → Plan (logical) → Protocol Layers pipeline
- Rust query execution via nte-query with QuerySpec DTO pattern
v1.4 Native Foundation (Shipped Feb 1, 2026) Rust-first architecture with CoreTopology as single source of truth.
v1.5 API Ergonomics (Shipped Feb 3, 2026) Query API completion — sorting, between queries, graph traversal, cascade delete.
v1.6 Documentation & Adoption (Shipped Feb 5, 2026) MkDocs site with Diataxis structure, tested examples, and domain case studies.
v1.7 API Usability & Ergonomics (Shipped Feb 9, 2026) Collision handling policies, safe defaults, round-trip I/O, and blueprint validation.
v1.8 Performance & Optimization (In Progress) Query optimization and large-scale topology support (10k+ nodes).
- Profiling infrastructure with py-spy, cProfile, and cargo-flamegraph
- LadybugDB backend evaluation and backend abstraction layer
- LazyFrame executor with filter planning, materialized query cache (100-1000x speedup)
- Hierarchical analytics with cross-layer queries (planned)
Roadmap:
- IP addressing — Automated IP address allocation and management across topology layers
- NSOT integration — Workflow to import/export topology state with Network Source of Truth systems
Tech Stack
Python (Pydantic), Rust core (petgraph-backed), PyO3 bindings
